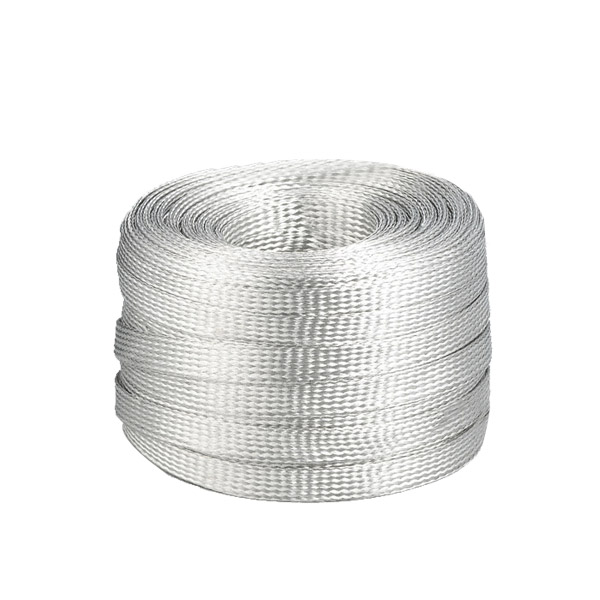

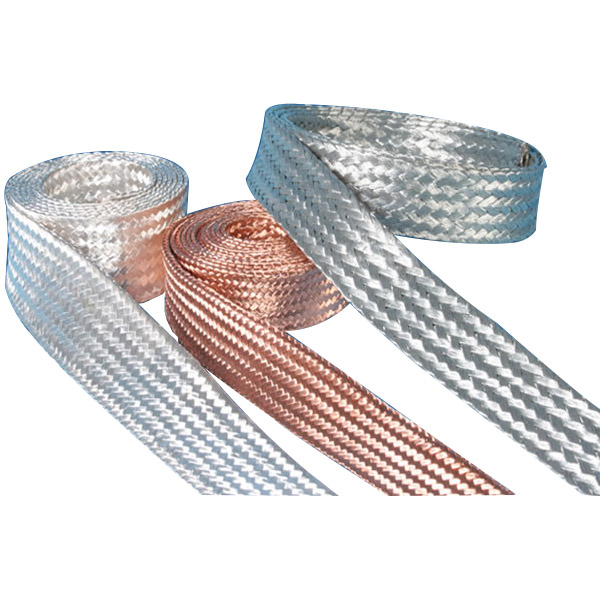

压扁线
Time：2016-03-25 13:58:14
View：3333
原材料：无氧铜 | 裸铜、镀锡、镀镍、镀银、合金 | 可以根据客户需求设计新产品规格 | |||
| 截面积 mm2 | 结构 | 单丝线径（mm) | 宽度 (mm) | 厚度 (mm) | 包装 |
| 16.00 | 24×22×1 | 0.20±0.003 | ≤16 | ≤3.0 | |
| 25.00 | 24×33×1 | ≤18 | ≤3.5 | ||
| 35.00 | 24×44×1 | ≤20 | ≤4.0 | ||
| 50.00 | 24×22×2 | ≤22 | ≤5.0 | ||
| 70.00 | 24×33×2 | ≤24 | ≤6.0 | ||
| 95.00 | 24×40×3 | ≤20 | － | ||
| 120.00 | 24×40×4 | ≤22 | － | ||
| 150.00 | 24×40×5 | ≤24 | － | ||
| 185.00 | 24×40×6 | ≤26 | － | ||
| 240.00 | 24×40×8 | ≤30 | － | ||
| 300.00 | 24×40×10 | ≤35 | － | ||
| 4.00 | 36×14×1 | 0.10±0.003 | ≤8 | ≤1.0 | |
| 6.00 | 36×21×1 | ≤12 | ≤1.2 | ||
| 10.00 | 36×36×1 | ≤14 | ≤2.0 | ||
| 16.00 | 36×56×1 | ≤16 | ≤2.5 | ||
| 25.00 | 36×42×2 | ≤18 | ≤3.5 | ||
| 35.00 | 36×56×2 | ≤20 | ≤4.5 | ||
| 4.00 | 48×4×1 | 0.15±0.003 | ≤9 | ≤1.0 | |
| 6.00 | 48×6×1 | ≤12 | ≤1.2 | ||
| 10.00 | 48×12×1 | ≤20 | ≤1.4 | ||
| 16.00 | 48×20×1 | ≤22 | ≤2.0 | ||
| 25.00 | 48×15×5 | ≤22 | ≤3.0 | ||
| 35.00 | 48×20×2 | ≤26 | ≤3.2 | ||
| 50.00 | 48×20×3 | ≤28 | ≤4.8 | ||
| 70.00 | 48×28×3 | ≤36 | ≤5.0 | ||
| 95.00 | 48×28×4 | ≤40 | ≤6.0 | ||
| 120.00 | 48×28×5 | ≤42 | ≤7.0 | ||
